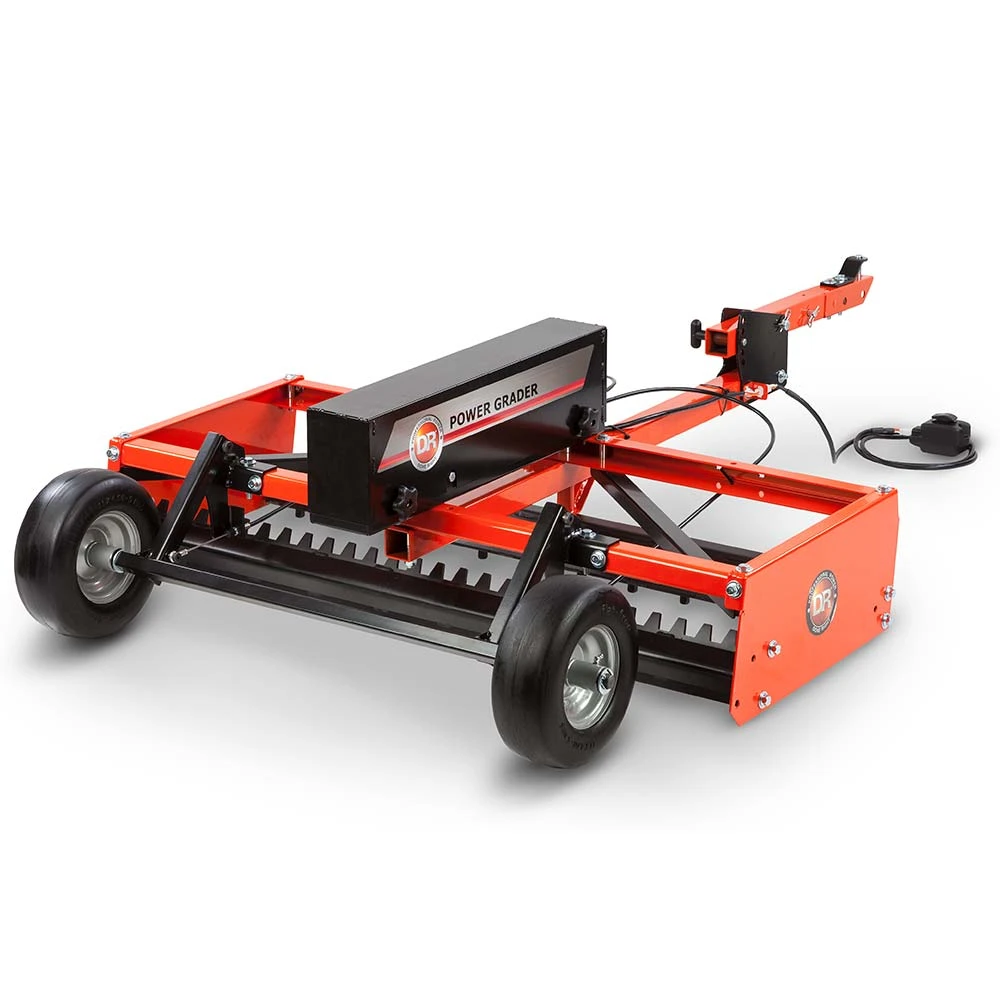

DR 48” POWER GRADER

EZ-Dial

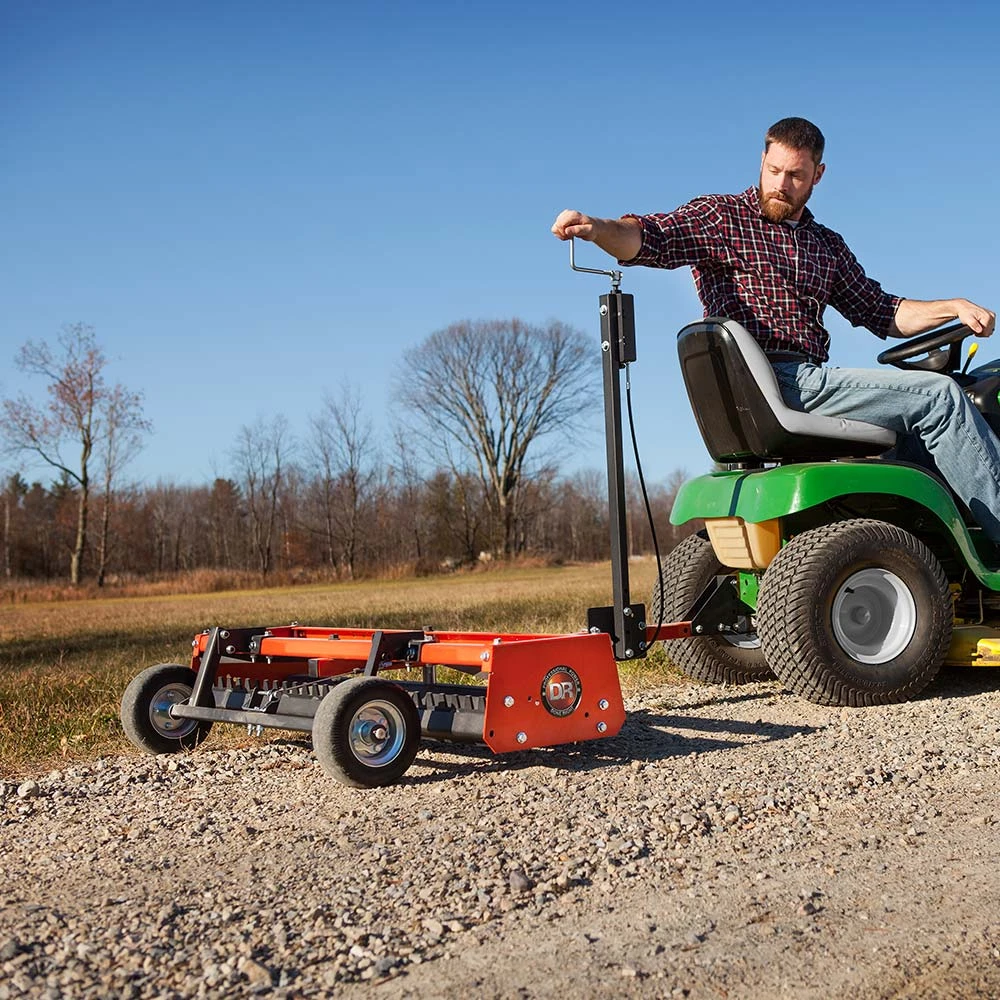

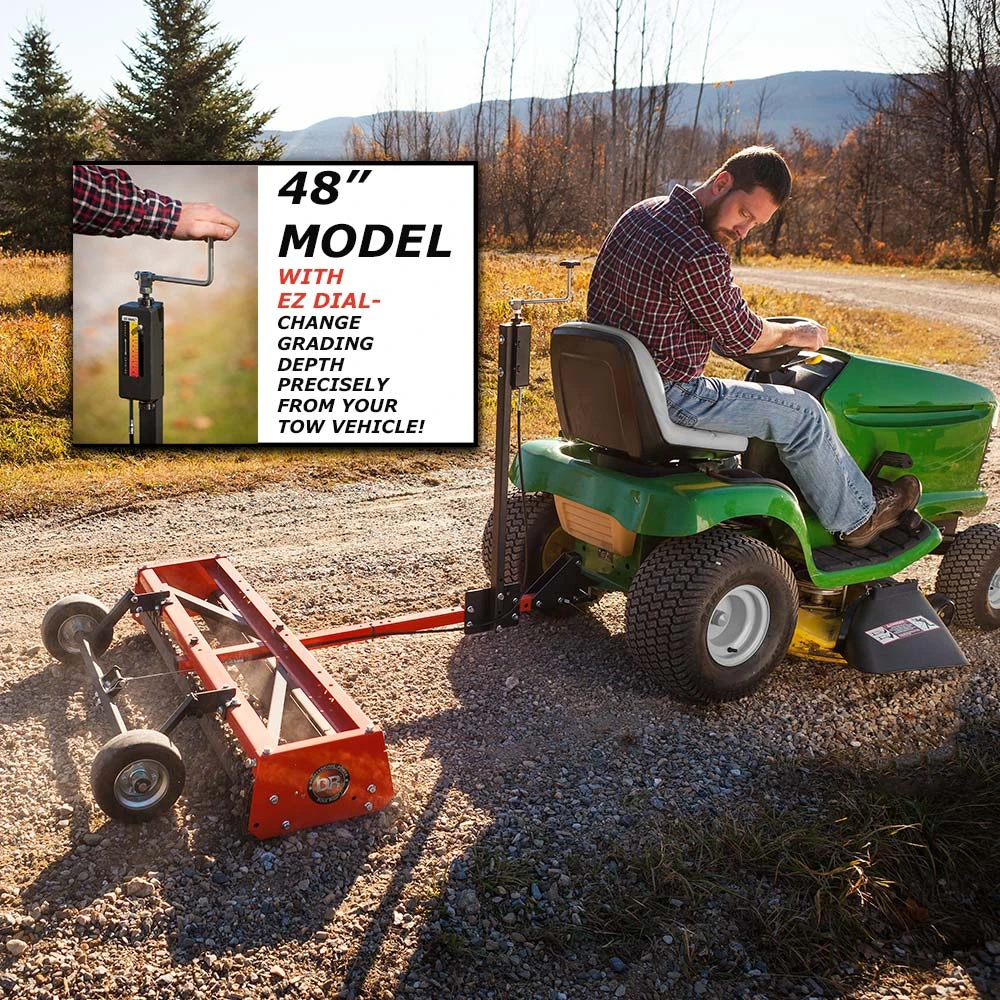

A simple hand crank allows you to adjust your grading depth right from the driver’s seat. Dial it down to grade aggressively, or dial it up to create ground clearance (for transporting or turning around between grading passes).

Adjustable Control

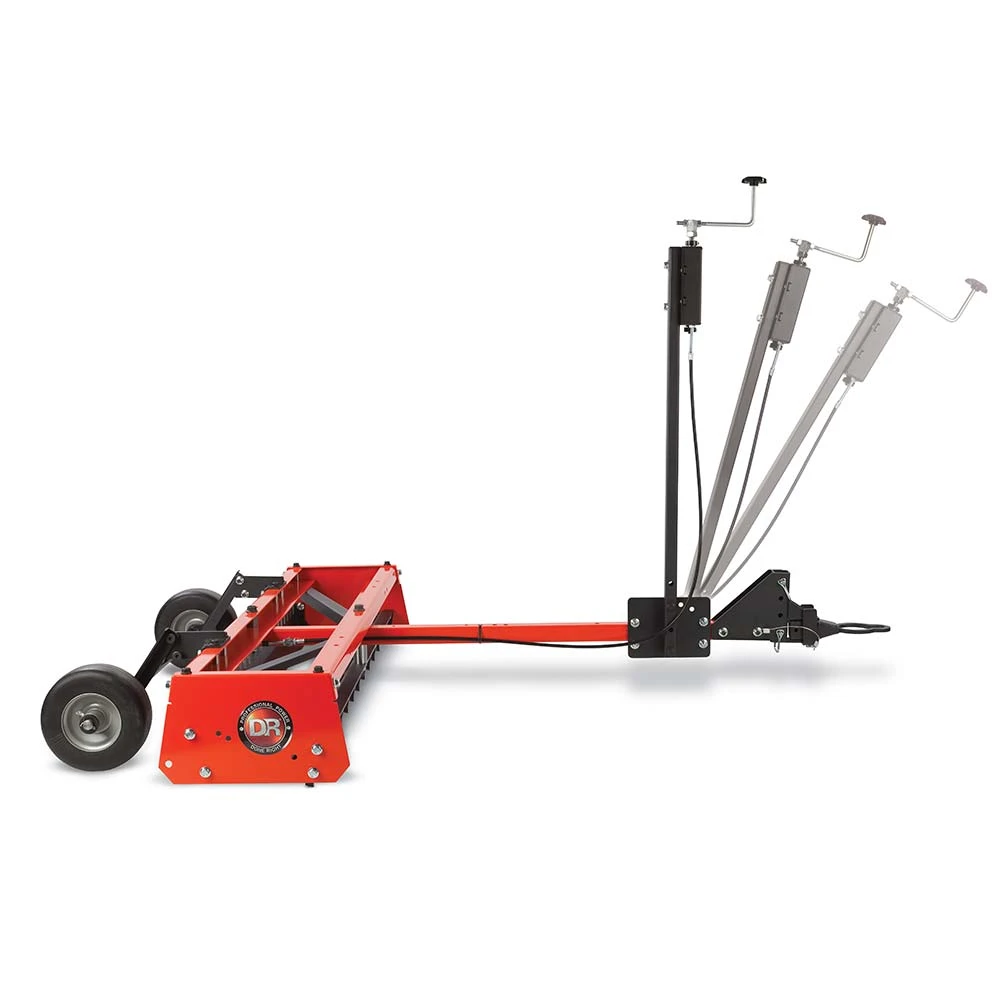

The EZ-Dial stanchion can be positioned to accommodate different tow vehicles and the comfort of the operator.

Carbide-Tipped Scarifying Teeth
The scarifying teeth cut into the road surface, to loosen materials for redistribution. These teeth are extremely durable—the same material is used on well drilling bits and excavating equipment—but can easily be replaced.

Dual Hitch
The EZ-Dial Power Grader includes both a ball hitch (shown) and pin hitch so you can easily hook it up to a wide variety of mowers, ATVs or UTVs.

Reversible Rear Leveling Blade
Use the flat edge (A) to smooth out graded materials. Use the toothed edge (B) when you want to “fluff” the top material (for example, in a horse arena).

Built-In Weight Rack
For more aggressive excavating action, the top of the frame is designed to seat a pair of standard cinder blocks.

Dimensions
Length 68″
Width 49″
Height 44″
Weight 133 lbs
Shipping Dimensions 50.5″L X 17.5″W X 13″H
Shipping Weight 148 lbs
General
Assembly Some assembly required
Grading
Teeth Carbide-Tipped Steel, 12
Lowest Teeth Level 3/4″ below ground
Highest Teeth Level Varies by Hitch Position
Leveling Blade Solid 1/4″ thick steel
Side Rails Solid 1/8″ thick steel
Material
Frame Steel
Towing
Towable Yes
Hitch Type Pin or Ball
Recommended Towing Vehicle Min 14 HP or 400 lbs. Lawn Tractor Garden Tractor Utility Tractor ATV UTV
