DR 48″ PRO POWER GRADE WITH POWERED REMOTE

The 48″ PRO with Powered Remote adds the convenience of push-button adjustment of grading depth while you grade. Operable from your tow vehicle, you can raise and lower the 12 grading teeth while you drive.

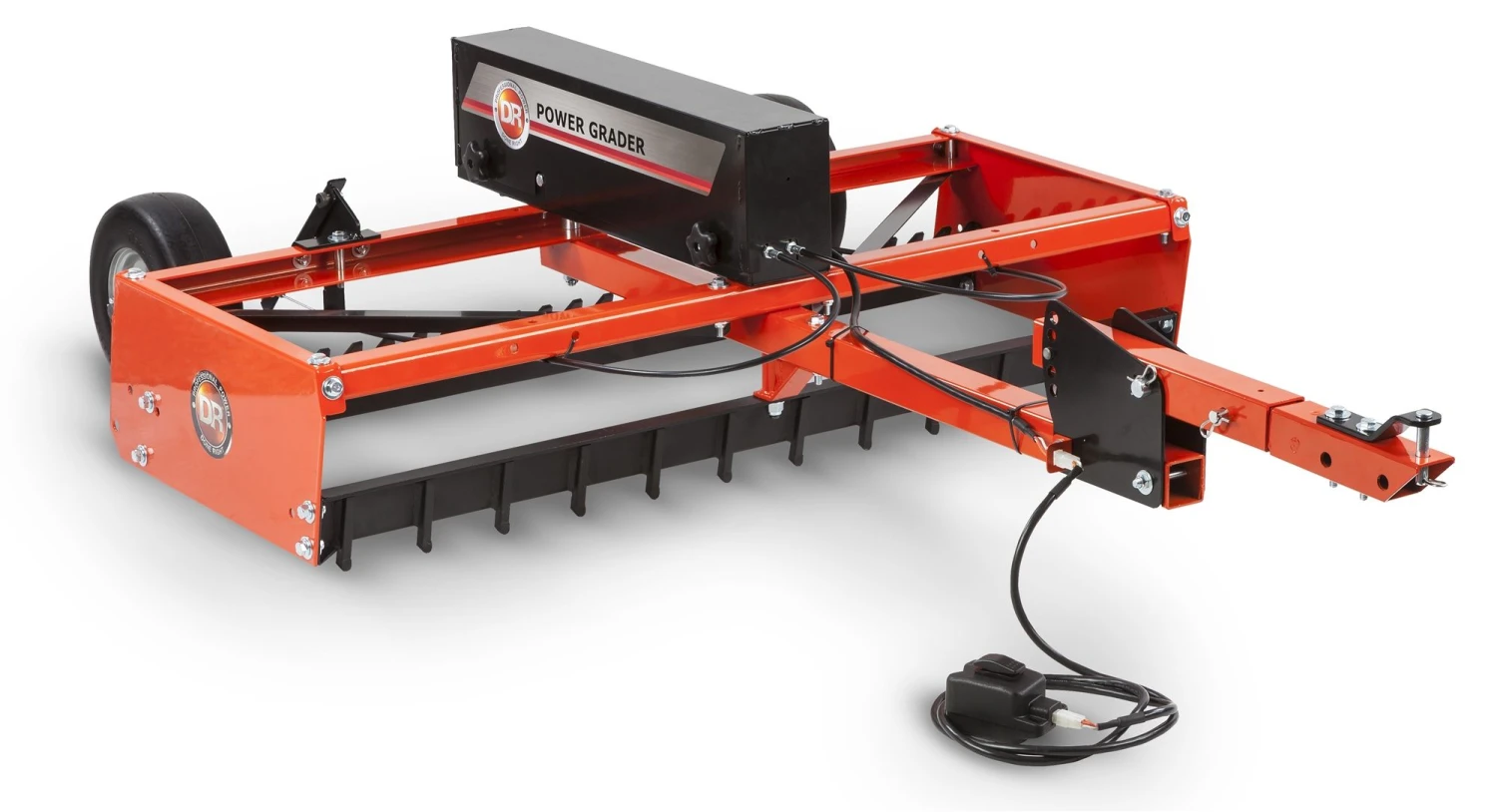

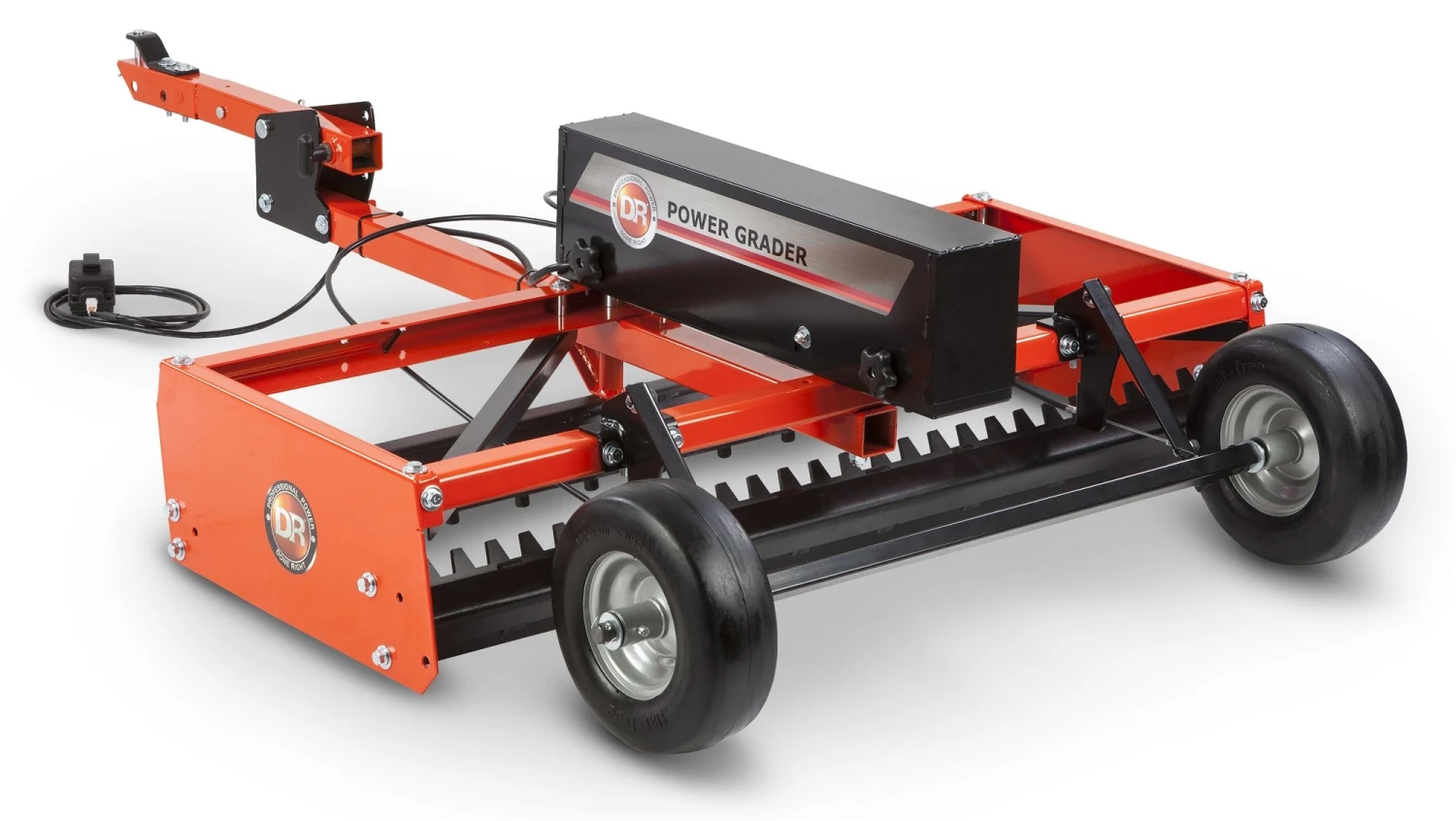

48″ PRO Model with Powered Remote Control
Our PRO models offer the convenience of cabled remote control that lets you adjust your grading depth from your tow vehicle while you drive.

12 carbide-tipped grading teeth loosen hard-packed dirt and gravel to remove bumps and washboard, and fill in potholes. The rear leveling blade then spreads the loosened material evenly.

Maintain ball fields
The optional Drag Screen breaks up clumps of dirt and leaves the infield smooth and even.

Prepare horse arenas
Smooth out footings to ensure the safety of your horses.

Repair parking areas
Fill in potholes, replace washed out gravel after rainstorms, eliminate ruts and washboard.

Seed a flat, even lawn
Before you seed your new lawn, grade the area with your DR to ensure a flat, smooth lawn.

Powered Remote Control
A rechargeable battery, a powerful electric motor, and a precise remote control raise or lower the scarifying teeth from your towing vehicle with the touch of a button.

Tungsten Carbide Scarifying Teeth
The scarifying teeth are 10x harder than steel. This is the same material used on mining equipment to chew through solid rock.

Powered Actuator
This powerful actuator provides a 4” stroke, raising the teeth from 4.5” above the surface (for travel and turning around) to 9/16” below the surface. It’s housed in a steel box that shields it from the elements and kicked-up debris.

Rechargeable Battery
Can be easily removed without tools for bringing indoors during the off-season. It can be recharged either on or off the grader. (Charger is included).

Easy Hitch
Every Power Grader comes with both a pin-hitch and a ball hitch connector (shown).

Product Summary:

48″ Grading width
12 Scarifying Teeth
Grading depth regulated by powered remote control
Tow Vehicle Recommendations:

Lawn or garden tractor (minimum of 14 HP and/or 400 lbs.)
Utility Tractor
ATV

Dimensions
Length: 85″
Width: 48″
Weight: 168 lbs.
Shipping Dimensions: 22″ L x 49″ W x 14.75″ H

Grading
Teeth: Carbide-Tipped Steel, 12
Lowest Teeth Level: 9/16″ below ground
Highest Teeth Level: 4.5″ above ground
Actuator: Electric actuator w/ 4″ stroke
Leveling Blade: Solid 1/4″ thick steel
Side Rails: Solid 10 guage steel

Material
Frame: Steel

Motor
Battery: 12V-9AH

Towing
Towable: Yes
Hitch Type: Pin or Ball
Recommended Towing Vehicle: Min 14HP, 400 lb Lawn/Garden Tractor or 360cc 4WD ATV/UTV (24″ max hitch height) – Utility Tractor

Wheels Tires
Number of Tires: 2
Dimensions: 11″ diameter
