HANDLER III -3″HD / 13 HP HOND

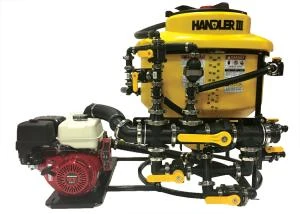

The H33HDP13 utilizes Hypro’s 3” polypropylene pump and the proven Honda GX390 (13HP) engine complete with electric start. Sprayer fill time is minimized with Handler bypass flow rates of 350 GPM (1325 LPM) thanks to the Hypro pump and our HD purpose built plumbing. 3” flow rates this high create higher operating pressures and the H33HDP13 is designed to handle them. The pressure spike relief valve eliminates any risk of water hammer which ensures operator safety along with protecting your equipment.

Even though the plumbing arrangement is different from other H2 and H3 Handlers, the H33HDP13 maintains all of the functionality you’ve come to expect in a Handler, including sprayer filling container emptying and rinsing, venturi based bulk chemical induction, tank emptying with venturi or direct pump draw, closed loop circulation and agitation, and wash line. Features also include:

Uni-directional bypass line for maximum flow.
Pressure spike relief valve to prevent damage.
Full 10L/20L container emptying and rinsing capabilities.
Dual port venturi with Handler and bulk draw capabilities.
Comes with the original Handler knife.
350 GPM (1325 LPM) bypass rates.
QUICK SPECIFICATIONS
70 US GAL/275L
3” CAMLOCK CONNECTIONS
16” HINGED AND LOCKABLE LID
2” DUAL PORT VENTURI
ROTACRAFT TANK RINSING NOZZLE
3” HYPRO PUMP/GX390 HONDA
ELECTRIC START (12V POWER NOT INCLUDED)
